Anytime, Anywhere, Anysort
 |
| Place of Origin: | China |
| Brand Name: | Anysort |
| Certification: | ISO9001 Certificate |
| Model Number: | TTW6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Machine Name: | TTW6 | Field: | Tea |
|---|---|---|---|
| Color: | White&Green | Feature: | Ultra - Low Air Consumption |
| Advantage: | Low Damage Rate | Accuracy Rate: | ≥99% |
| After-sales Service: | 7*24 | Guarantee: | One Year |
| High Light: | Ultra Low Air Consumption Tea Sorter,Tea Sorting Machine 99% Accuracy,Tea Sorter Machine Low Damage Rate |
||
Ultra - Low Air Consumption Tea Color Sorter Low Damage Rate
Tea Color Sorter Features:
1. Intelligent visualization interaction
Humanized-design interactive smart screen makes selecting process become straight and concise. The self-learning function can select at one time and improve every time.
2. New hawk - eye recognition camera that can analyze and process cloud image at high speed to complete acquisition and computing, enables to precisely reject the same color or dark color stalk from tea and realizes the grade separation of slightly different color tip.
3. Tea color sorting process can be seen effectively and intuitively through the humanized interactive touch screen and professional software is used for data analysis of different types of tea. Tea color sorting becomes more simple and more convenient.
Anysort Tea Color Sorter Technical Parameters:
|
Model |
Throughput (kg/h)
|
Sorting Accuracy (%)
|
Air Pressure |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| TQ2S | ≤350 | ≥99 | 0.6~0.8 | 2.1 | 380V/50HZ | 1900*2100*2900 | 960 |
| TT3 | ≤1250 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2488 |
| TQ4 | ≤780 | ≥99 | 0.5~0.8 | 5.0 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TTQ4 | ≤880 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 2800*1880*2380 | 2100 |
| TTW4 | ≤920 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2200 |
| TTQ6 | ≤1200 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2500 |
|
TTW6 |
≤1300 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2700 |
| TTW6R | ≤1250 | ≥99 | 0.5~0.8 | 3.5 | 380V/50HZ | 2735*2810*3900 | 3800 |
Tea Color Sorter Application Fields: green tea/black tea/dark tea/white tea/ yellow tea

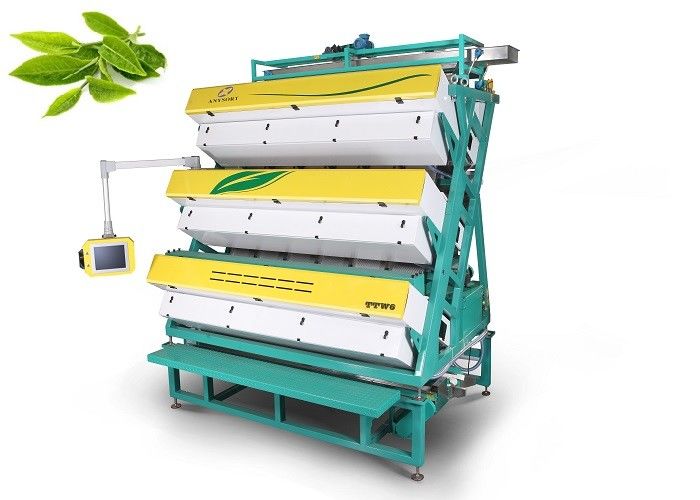

TTW6 Tea Color Sorter Description:
This is a triple layered infrared color sorter with 64 channels for sorting tea product. It is a high-end optical sorting machine and is quite popular. Better configuration, bigger capacity. All can be managed by AI.Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration.
Examples of sorting:
Frequently Asked Questions:
Q:What can you provide if we buy the machine?
A:After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q:Can you supply the air compressor, air tank and air filters?
A:Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
Q:How to calculate Installation personnel cost?
A:Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation
Q: What can you provide if we buy the machine?
A:After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
After Sales Services:
Anysort has a complete after-sales service management system to fully follow up each color sorter. It also has a 7*24h after-sales service team with solid technology, a nationwide visiting system and numerous offices throughout China. The after-sales personnel will rush to the user's site as soon as possible to make sure that every color sorter is in the best work conditions to give full play to its performance.
