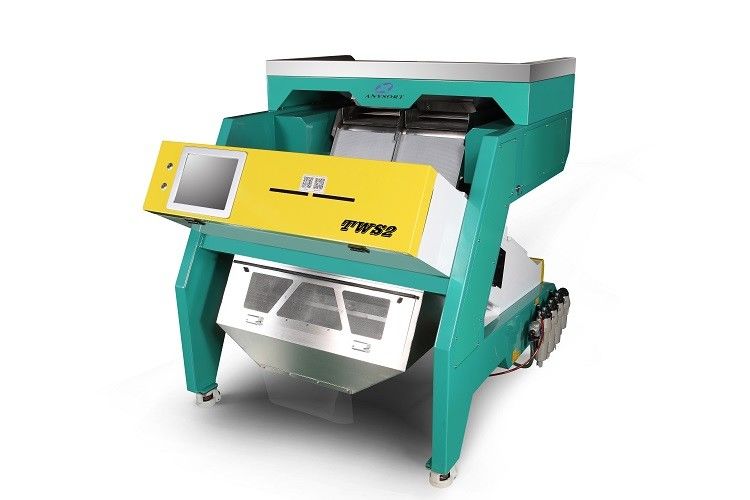

99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera

99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera

  • 99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera
99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera
Product Details:
Place of Origin: Chian
Brand Name: Anysort
Certification: CE Certificate
Model Number: TWS2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Model No.: TWS2 Capacity: ≤220kg/h
Sorting Accuracy: ≥99% Product Power: 0.8kw
Dimension(L*W*H): 1530*1300*1500mm Weight: 446kg
High Light:

1200kg/h tea color sorting machine

,

hawkeye camera tea sorting machine

,

99% accuracy tea color sorter

Black Tea Color Sorter green Tea Leaf Processing Machine

Color Sorter Introduction:



1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate
3. our innovative Hawkeye recognition camera will scan and computing the falling materials .
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.


Technical Parameters:





Model



Throughput

(kg/h)





Sorting Accuracy

(%)





Air Pressure
(mpa)



Power (kw)





Power Supply



Dimension

L×W×H(mm)





Weight

(kg)

TTQ6 ≤1200 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2500
TTW6 ≤1300 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2700
TTW6R ≤1250 ≥99 0.5~0.8 3.5 380V/50HZ 2735*2810*3900 3800
TW6R ≤1150 ≥99 0.5~0.8 3.2 380V/50HZ 3000*2445*3100 2500
TTR3 ≤1250 ≥99 0.5~0.8 5.5 380V/50HZ 3200*2560*3920 3250

Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.



Color Sorter Application Fields:



Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice

Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea

Tea: green tea/black tea/dark tea/white tea/ yellow tea

Cereals: corn/barley/wheat/oat/sesame/malt

Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed

Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio

Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage

Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl

Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric


Examples of Sorting:
99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera 0

99% Accuracy Tea Color Sorter With Hawkeye Recognition Camera 1
