Anytime, Anywhere, Anysort
 |
| Place of Origin: | Anhui,China |
| Brand Name: | Anysort |
| Certification: | ISO9001 |
| Model Number: | VM364 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Machine Name: | VM364 | Field: | Grain |
|---|---|---|---|
| Technology: | Intelligent LED Lights Alarm | Advantage: | Low Damage Rate |
| Certificate: | ISO9001 | Accuracy Rate: | ≥99.5% |
| Power: | 3.5kw | Guarantee: | 1 Year |
| High Light: | Intelligent LED Lights Alarm Grain Sorter,LED Light Alarm Grain Sorting Machine,Grain Sorter Low Damage Rate |
||
Intelligent LED Lights Alarm Grain Color Sorter Low Damage Rate
Grain Color Sorter Features:
1. The material sorting can be captured dynamically at very high speed as well as analyzed and showed. It realizes truly visualization.
2. The new high-frequency solenoid valve exclusive to color sorter with ultra-low air consumption ensures optimized carryover ratio and high sorting accuracy. It features perfect self-recovery system, low maintenance cost and long lifetime above 10 billion times.
3. The high performance LED optical system design and light control technology ensure maintenance free and reduce 35% of energy consumption.
Technical Parameters:
|
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Optimized Carryover |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| VM164+ | 0.5-2 | ≥99.5 | ＞10:1 | 1.5 | 220V/50HZ | 1530*1840*2050 | 792 |
| VM264+ | 0.5-3 | ≥99.5 | ＞10:1 | 1.8 | 220V/50HZ | 1530*1840*2050 | 958 |
| VM364+ | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 |
| VM464+ | 2.0-8 | ≥99.5 | ＞10:1 | 4 | 220V/50HZ | 2210*1840*2050 | 1270 |
| VM564+ | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 |
| VM664+ | 5.0-18 | ≥99.5 | ＞10:1 | 5.5 | 220V/50HZ | 2890*1840*2050 | 1580 |
| VM1064 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 |
Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.

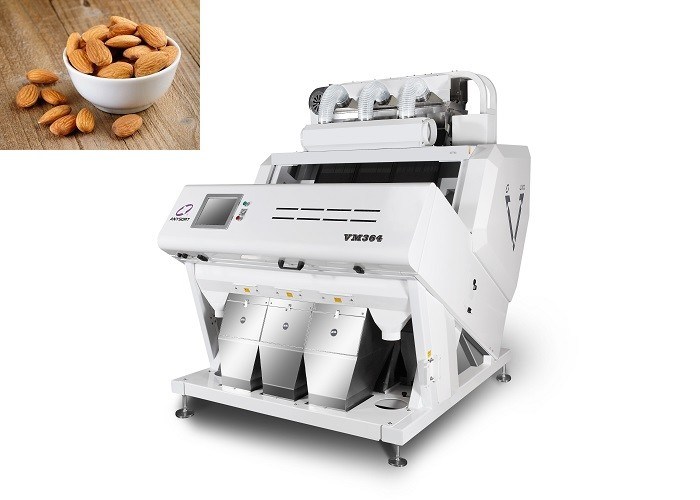

VM364 Grain Color Sorter Introduction:
VM364 is applied for multi-grain sorting function, including coffee beans, grains, nuts, corn kernels and etc. Its 64 channels plus 3 chutes.
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, dehydrated vegetables and wide range of tea.
Sorting Examples:
Our Advantage :
1.Achievement of customer
For the customer service is the only reason to Anysort existence, customer demand for the development of Anysort is the driving force. We adhere to the customer as the center, rapid response to customer demand, continue to create long-term value for customers and achievement. Provide effective services for the customers, is the direction of our work and value evaluation scale, achievement of the customers are the achievements of our own.
2.Opening and enterprising
In order to better meet customer demand, we are actively enterprising, brave in exploitation, adhere to the opening and innovation. Any advanced technology, products, solutions and business management, can only produce value into a commercial success. we adhere to the customer demand, continuous innovation around customers demand.
3.The team cooperation
We toast for celebrating when success come , we support when failure come . Teamwork is not only cross-cultural group cooperation spirit, but also the strong guarantee for breaking departmental walls, improving the efficiency of the process.
After Sales Services:
Free software upgrade services for our customers lifelong.
One year warranty and free maintenance.
Engineers available to service machinery overseas.
