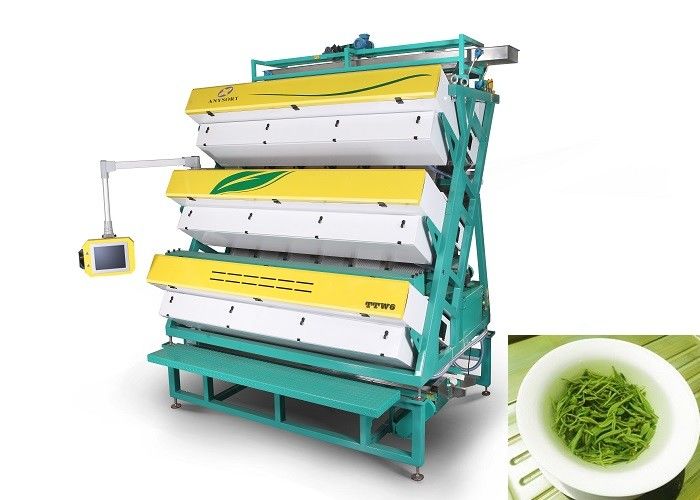

Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition

Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition

  • Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition
Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition
Product Details:
Place of Origin: China
Brand Name: Anysort
Certification: ISO9001
Model Number: TTW6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Name: TTW6 Field: Tea
TECHNOLOGY: Intelligent Visualization Interaction ADVANTAGE: New Hawkeye Recognition
Sorting Accuracy(%): ≥99 CERTIFICATE: ISO9001
Power: 7.0kw Guarantee: 1 Year
High Light:

Tea Colour Sorter Visualization Interaction

,

Hawkeye Recognition Tea Colour Sorter

,

99% Tea Colour Sorter

Intelligent Visualization Interaction Tea Color Sorter With New Hawkeye Recognition



Tea Color Sorter Features:

1. Tea color sorting process can be seen effectively and intuitively through the humanized interactive touch screen and professional software is used for data analysis of different types of tea. Tea color sorting becomes more simple and more convenient.

2. New hawk eye recognition camera that can analyze and process cloud image at high speed to complete acquisition and computing, enables to precisely reject the same color or dark color stalk from tea and realizes the grade separation of slightly different color tip.

3. Humanized - design interactive smart screen makes selecting process become straight and concise. The self - learning function can select at one time and improve every time.



Technical Parameters:





Model



Throughput

(kg/h)





Sorting Accuracy

(%)





Air Pressure
(mpa)



Power (kw)





Power Supply



Dimension

L×W×H(mm)





Weight

(kg)

TTQ6 ≤1200 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2500
TTW6 ≤1300 ≥99 0.6~0.8 7.0 380V/50HZ 3230*2250*3500 2488
TTW6R ≤1250 ≥99 0.5~0.8 5.5 380V/50HZ 3520*2800*3920 3800
TW6R ≤1150 ≥99 0.5~0.8 3.2 380V/50HZ 3000*2445*3100 2500
TTR3 ≤1250 ≥99 0.5~0.8 5.5 380V/50HZ 3200*2560*3920 3250

Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.



Working Principle:

The tea color sorting machine is a camera that takes photos of the tea leaves and transmits the photo information to the image processing system. The image processing system distinguishes the good and bad tea leaves, and gives instructions to the spray valve to blow out the bad tea leaves, tea stems and yellow leaves to obtain high quality tea leaves.


 Examples of Sorting:

Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition 0Intelligent Visualization Interaction Tea Color Sorter With Hawkeye Recognition 1



Anysort Advantages:

1. Anysort, founded in 1999,has been specialized in color sorter manufacturing for over 21 years, initiated new era of cloud technology,explored future development of color sorter.

Anysort is always dedicated to developing cutting-edge technology and has been awarded a number of patent honors till now.

2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet fine classification requirements and get good shape sorting effect.

3. Global initiative hawkeye recognition technology combined with cloud image high-speed capture and processing technology can precisely recognize tiny spot, slight color difference and some other impurities that normal color sorter cannot recognize. It perfectly realizes precise classification and optimized carryover ratio.

4. Online Engineering service is always available while providing installation and after-sale service locally in all countries.

5. intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.



Packing and Shipping:

Lead time:15 working days after receiving original L/C or deposit.

Quality: The quality of the goods as Factory Standard.

Packing: Factory's standard export plywood box package suitable for container shipment.
