Anytime, Anywhere, Anysort
 |
| Place of Origin: | Hefei,Anhui,China |
| Brand Name: | Anysort |
| Certification: | CE |
| Model Number: | TTWV6F |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Model: | TTWV6F | Technology: | AI Interactive Technology |
|---|---|---|---|
| Advantage: | Low Damage Rate | Certificate: | CE |
| Accuracy: | ≥99% | Power: | 5.5kw |
| Guarantee: | 1 Year | After Sales Service: | 7*24 |
| High Light: | AI Interactive Technology Tea Sorter,Tea Sorting Machine Low Damage Rate,64 Channels Tea Sorting Machine |
||

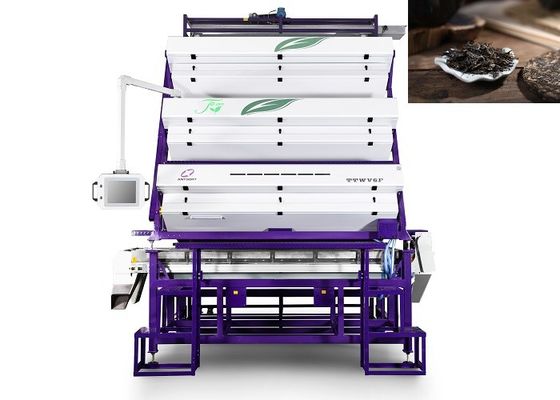

AI Interactive Technology Tea Color Sorting Machine Low Damage Rate
Tea Color Sorting Machine Product Description:
1. TTWV6F is our high-end tea color sorter.This is a five layered combined infrared color sorter with 64 channels for sorting tea product. It is a high-end optical sorting machine and is quite popular.
2. Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration.Better configuration, bigger capacity. All can be managed by AI.
Technical Parameters:
|
Model |
Throughput (kg/h)
|
Sorting Accuracy (%)
|
Air Pressure |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| TT2 | ≤900 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TT3 | ≤1250 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2488 |
| TQ4 | ≤780 | ≥99 | 0.5~0.8 | 5.0 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TTQ4 | ≤880 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 2800*1880*2380 | 2100 |
| TTW4 | ≤920 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2200 |
| TTQ6 | ≤1200 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2500 |
| TTW6 | ≤1300 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2700 |
| TTWV6F | ≤1500 | ≥99 | 0.6~0.8 | 5.5 | 380V/50HZ | 3630*4750*4020 | 4900 |
Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.
TTWV6F Tea Color Sorter Features:
1. AI intelligent valve (with high sorting accuracy)
With self-adaptive and self-regulate switching frequency, can achieve high blowing accuracy and the lowest tea damage ratio.
2. AI interactive technology
Interactive, mechanical structure can accurately separate stalk, slice and flaky leaf and bud at one-time without need of resorting.
3. AI beyond visual range
AI system with self-evolutionary algorithm, makes strong product consistency and clean rejection on dark color stalks.
Sorting Examples:
Our Services :
1. The customer view "happy partners, growing together" always motivates Anysort staff to care about customers’ demand and provide the best solutions for customers from home and abroad.
2. Anysort currently has more than 120 after-sales service staffs, providing the timely and considerate service for customers
Online Engineering service is always available while providing software checking and maintenance. After-sale service is also provided locally in all countries.
3. We provide one year guarantee for machine as well as professional training and technical guidance, 7x24h consultation service. which fully reflects our service mode of fast response, timely maintenance and tracking coordination.
Device Characteristic:
1. Efficiently sort needed material from rejected one;
2. Separate various colors;
3. Strengthened spout and air jet design for high per-cent contaminated material, durable and dependent;
4. Adopts high-resolution image sensor, equipped with high-speed automatic identifying and analyzing system.
Packing and Shipping:
Lead time:15 working days after receiving original L/C or deposit.
Quality: The quality of the goods as Factory Standard.
Packing: Factory's standard export plywood box package suitable for container shipment.
