Anytime, Anywhere, Anysort
 |
| Place of Origin: | Hefei,China |
| Brand Name: | Anysort |
| Certification: | ISO9001 Certificate |
| Model Number: | TTQ6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Field: | Tea | Technology: | AI Shape Sorting Technology |
|---|---|---|---|
| Advantage: | Ultra Power Saving | Sorting Accuracy: | ≥99% |
| Certificate: | ISO9001 | After-sales Service: | 7*24 |
| Guarantee: | One Year | Chutes: | U-shaped |
| High Light: | Tea anysort color sorter,AI shape tea color sorter,Power Saving anysort color sorter |
||

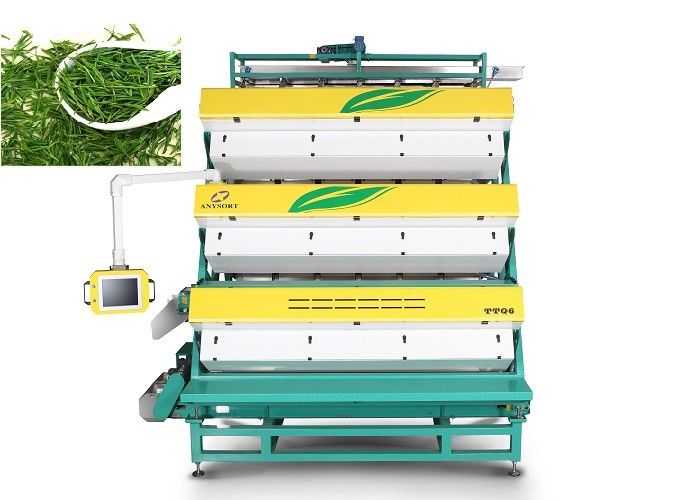

AI Shape Sorting Technology Ultra Power Saving Tea Color Sorter Machine
AI Shape Sorting Technology Ultra Power Saving Tea Color Sorter Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The Hawkeye recognition camera while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.
Anysort Tea Color Sorter Technical Parameters:
|
Model |
Throughput (kg/h)
|
Sorting Accuracy (%)
|
Air Pressure |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| TQ2S | ≤350 | ≥99 | 0.6~0.8 | 2.1 | 380V/50HZ | 1900*2100*2900 | 960 |
| TT3 | ≤1250 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2488 |
| TQ4 | ≤780 | ≥99 | 0.5~0.8 | 5.0 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TTQ4 | ≤880 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 2800*1880*2380 | 2100 |
| TTW4 | ≤920 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2200 |
| TTQ6 | ≤1200 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2500 |
| TTW6 | ≤1300 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2700 |
Tea Color Sorter Application Fields: green tea/black tea/dark tea/white tea/ yellow tea
Anysort Cloud Color Sorter Three Intelligent Function:
1.Cloud Intelligence
Global initiative one button cloud intelligent technology can intelligently recognize,analyze and calculate input impurity to adjust running data without the inconvenience caused by the complex operation.
2.Intelligent Multilevel sorting
Global initiative intelligent multilevel sorting technology ensures the fine classification of material and perfect realization of the maximum value of color sorting.
3.Intelligent Value
Intelligent high-frequency solenoid value with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.
Examples of sorting:
After Sales Services
Anysort has a complete after-sales service management system to fully follow up each color sorter. It also has a 7*24h after-sales service team with solid technology, a nationwide visiting system and numerous offices throughout China. The after-sales personnel will rush to the user's site as soon as possible to make sure that every color sorter is in the best work conditions to give full play to its performance.
Packing and Shipping:
Lead time:15 working days after receiving original L/C or deposit.
Quality: The quality of the goods as Factory Standard.
Packing: Factory's standard export plywood box package suitable for container shipment.
Q What can you provide if we buy the machine?
A After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q Can you supply the air compressor, air tank and air filters?
A Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
Q How to calculate Installation personnel cost?
A Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation
Q What can you provide if we buy the machine?
A After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
