Anytime, Anywhere, Anysort
 |
| Place of Origin: | Hefei, China |
| Brand Name: | Anysort |
| Certification: | CE Certificate |
| Model Number: | VM264 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Advantage: | Low Maintenance Cost | Size: | 10 Chutes Size |
|---|---|---|---|
| Guarantee: | One Year | Color: | White&Silver |
| Accuracy Rate: | ≥99.5 | Chutes: | U-shaped Chutes |
| Power: | ＞10:1 | Power Supply: | 220V/50HZ |
| High Light: | 10 Chutes rice sorting machine,Low maintenance anysort color sorter,10 Chutes anysort color sorter |
||
High Rejection Accuracy Low Maintenance Cost Grain Color Sorting Machine
High Rejection Accuracy Low Maintenance Cost Grain Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The Hawkeye recognition camera while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.
Technical Parameters:
|
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Optimized Carryover |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| VM164+ | 0.5-2 | ≥99.5 | ＞10:1 | 1.5 | 220V/50HZ | 1530*1840*2050 | 792 |
| VM264+ | 0.5-3 | ≥99.5 | ＞10:1 | 1.8 | 220V/50HZ | 1530*1840*2050 | 958 |
| VM364+ | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 |
| VM464+ | 2.0-8 | ≥99.5 | ＞10:1 | 4 | 220V/50HZ | 2210*1840*2050 | 1270 |
| VM564+ | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 |
| VM664+ | 5.0-18 | ≥99.5 | ＞10:1 | 5.5 | 220V/50HZ | 2890*1840*2050 | 1580 |
| VM1064 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 |
Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.
Anysort Cloud Color Sorter Three Intelligent Function:
1.Cloud Intelligence
Global initiative one button cloud intelligent technology can intelligently recognize,analyze and calculate input impurity to adjust running data without the inconvenience caused by the complex operation.
2.Intelligent Multilevel sorting
Global initiative intelligent multilevel sorting technology ensures the fine classification of material and perfect realization of the maximum value of color sorting.
3.Intelligent Value
Intelligent high-frequency solenoid value with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.

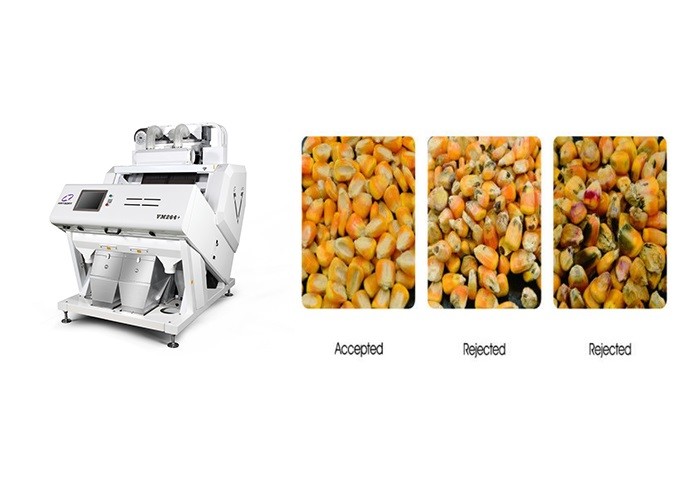

Sorting Examples:
Color Sorter Application Fields:
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric
