Place of Origin: | Hefei, Anhui, China |
Brand Name: | Anysort |
Certification: | ISO9001 Certificated |
Model Number: | TQ5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Box |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 5000 sets per year |
Accuracy Ratio: | More Than 99.99 | Power Supply: | 380V/50HZ |
---|---|---|---|
Lights: | LED | Technology: | Smart Cloud Guard |
System: | Perfect Self-recovery System | Certificate: | CE |
Screen: | Cloud Image Processing | Chutes: | 5 |
High Light: | Dried Veggies Color Sorter,380V vegetable sorting machine,380V Vegetable Color Sorter |

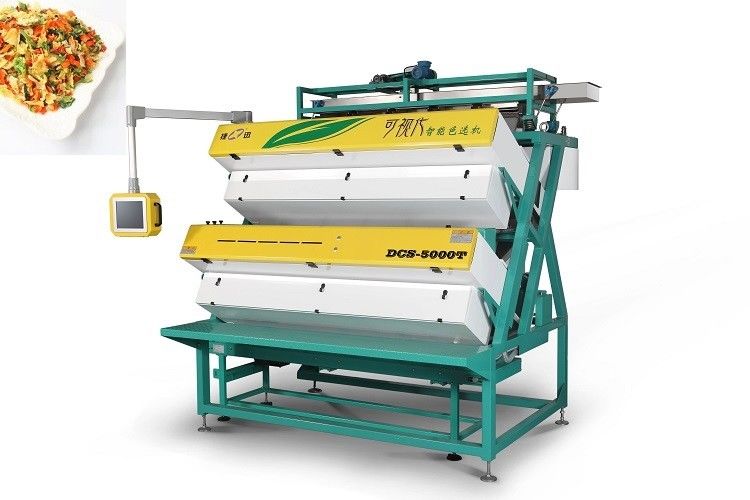

TQ5 Optical for Dried Veggies Smart Cloud Guard Perfect Self-recovery System
TQ5 Sorting Machine Introduction:
With imported high-performance LED optical system design and light control technology greatly reduce energy consumption. AI system with self-evolutionary algorithm, makes strong product consistency and clean rejection on dark color stalks.
TQ5 Sorting Machine Features:
1. No damage during the sorting process.
2. Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration.
3. Accurately identify subtle shape differences to meet fine classification requirements and get good shape sorting effect.
4. With self-adaptive and self-regulate switching frequency, can achieve high blowing accuracy and the lowest tea damage ratio.
Technical Parameters:
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Mpa |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
TQ5 | ≤900 | ≥99 | 0.5~0.8 | 3.0 | 380V/50HZ | 2360*2110*2830 | 1400 |
TQ6 | ≤1150 | ≥99 | 0.5~0.8 | 3.6 | 380V/50HZ | 2730*2110*2830 | 1600 |
T2 | ≤780 | ≥99 | 0.5~0.8 | 2.5 | 380V/50HZ | 1870*2110*2830 | 1160 |
T3 | ≤1150 | ≥99 | 0.5~0.8 | 3.2 | 380V/50HZ | 2730*2110*2830 | 1600 |
TT2 | ≤900 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2100 |
TT3 | ≤1250 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2488 |
TTQ4 | ≤880 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2100 |
TTW4 | ≤920 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2200 |
Sorting Examples:
· Disconnection occurred to the valve core,you can Replace the ejector
· Good quality, large capacity and low running cost
· Quality assurance
· OEM and ODM orders are welcomed.The goods can be manufactured according to your own designs,colors and sizes,as long as you could offer us pictures and sizes.
· The new benchmark in seed,grains, nuts and dehydrated color sorting
· Little waste and high profitability
