Anytime, Anywhere, Anysort
 |
| Place of Origin: | Hefei, Anhui, China |
| Brand Name: | Anysort |
| Certification: | ISO9001 Certificated |
| Model Number: | TQ5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Accuracy Ratio: | More Than 99.99 | Power Supply: | 380V/50HZ |
|---|---|---|---|
| Lights: | LED | Technology: | AI Variable Light Control Technology |
| Screen: | Intelligent Visualization Interaction | Series: | Cloud Internet Of Things |
| Valve: | High Frequency Solenoid | Color: | Green And Yellow |
| High Light: | AI Variable light vegetable sorter,ISO9001 vegetable sorter,Dried Veggies anysort color sorter |
||

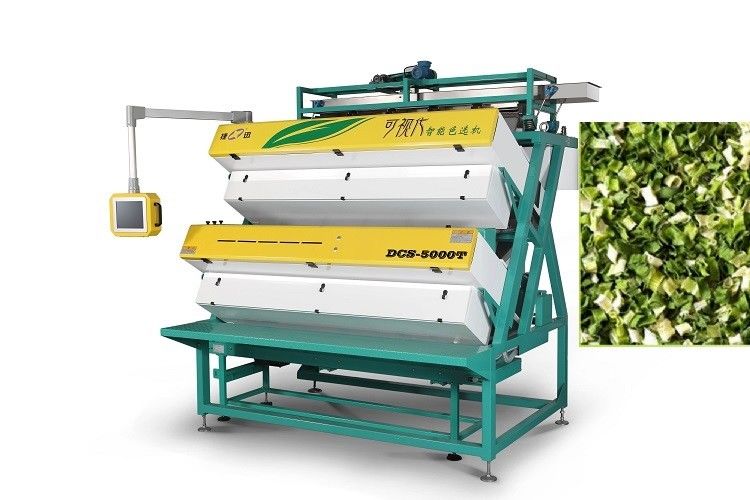

380V/50HZ Dried Veggies Optical Sorting Machine ISO9001 Certificated AI Variable Light Control Technology
TQ5 Sorting Machine Introduction:
High-end infrared LED array source features more focused wavelength, stronger penetrability, more stable light source and long lifetime over 70000 hours. High-end InGaAs recognition technology with ultra high resolution, wide range of spectral response and sorting scope can precisely reject metal, nylon rope, soil block, animal stool, wrapping paper, butt, slag, plastic, nylon rope, soil block,insects, stone, glass, metal, nylon rope, soil block, animal stool, wrapping paper, butt, slag, cereals and other non-tea malignant impurities.
TQ5 Sorting Machine Features:
1. No damage during the sorting process.
2.Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration.
3.Accurately identify subtle shape differences to meet fine classification requirements and get good shape sorting effect.
4.With self-adaptive and self-regulate switching frequency, can achieve high blowing accuracy and the lowest tea damage ratio.
Technical Parameters:
|
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Mpa |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| TQ5 | ≤900 | ≥99 | 0.5~0.8 | 3.0 | 380V/50HZ | 2360*2110*2830 | 1400 |
| TQ6 | ≤1150 | ≥99 | 0.5~0.8 | 3.6 | 380V/50HZ | 2730*2110*2830 | 1600 |
| T2 | ≤780 | ≥99 | 0.5~0.8 | 2.5 | 380V/50HZ | 1870*2110*2830 | 1160 |
| T3 | ≤1150 | ≥99 | 0.5~0.8 | 3.2 | 380V/50HZ | 2730*2110*2830 | 1600 |
| TT2 | ≤900 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TT3 | ≤1250 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2488 |
| TTQ4 | ≤880 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2100 |
| TTW4 | ≤920 | ≥99 | 0.6~0.8 | 3.2 | 380V/50HZ | 1920*2250*3500 | 2200 |
Sorting Examples:
