Anytime, Anywhere, Anysort
 |
| Place of Origin: | Chian |
| Brand Name: | Anysort |
| Certification: | CE Certificate |
| Model Number: | TWS2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Model No.: | TWS2 | Capacity: | ≤220kg/h |
|---|---|---|---|
| Sorting Accuracy: | ≥99% | Product Power: | 0.8kw |
| Dimension(L*W*H): | 1530*1300*1500mm | Weight: | 446kg |
| High Light: | automatic tea colour sorting machine,hawkeye recognition tea sorting machine,colour sorting machine ce approved |
||

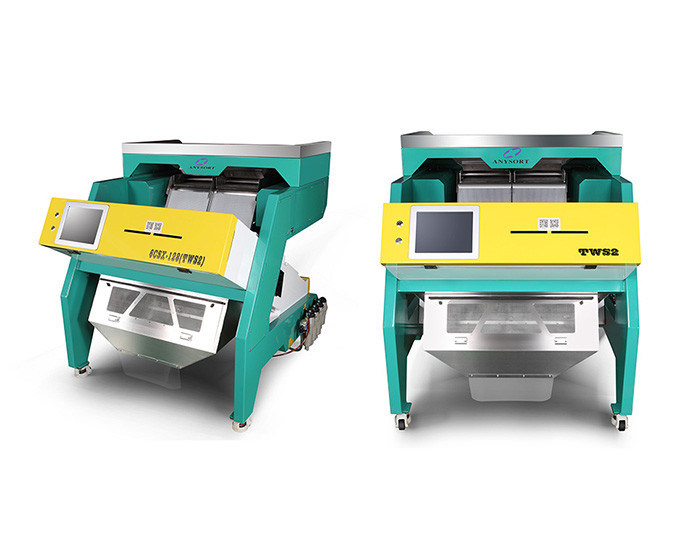

Black Tea Color Sorter green Tea Leaf Processing Machine
Color Sorter Introduction:
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate
3. our innovative Hawkeye recognition camera will scan and computing the falling materials .
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters:
|
Model |
Throughput (kg/h)
|
Sorting Accuracy (%)
|
Air Pressure |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| TTQ6 | ≤1200 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2500 |
| TTW6 | ≤1300 | ≥99 | 0.6~0.8 | 3.5 | 380V/50HZ | 2730*2250*3500 | 2700 |
| TTW6R | ≤1250 | ≥99 | 0.5~0.8 | 3.5 | 380V/50HZ | 2735*2810*3900 | 3800 |
| TW6R | ≤1150 | ≥99 | 0.5~0.8 | 3.2 | 380V/50HZ | 3000*2445*3100 | 2500 |
| TTR3 | ≤1250 | ≥99 | 0.5~0.8 | 5.5 | 380V/50HZ | 3200*2560*3920 | 3250 |
Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.
Color Sorter Application Fields:
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric
Examples of Sorting:
