Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm

Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm

  • Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm
Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm
Product Details:
Place of Origin: Hefei,China
Brand Name: Anysort
Certification: CE
Model Number: TTW6R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Machine Name: TTW6R Field: Tea
Accuracy: ≥99.99% Advantage: Intelligent LED Lights Alarm
Feature: Ultra Low Air Consumption Certificate: CE
Camera: Hawk Eye Camera After-sales Service: 7*24
High Light:

Intelligent LED Alarm Infrared Sorting Machine

,

Infrared Sorting Machine 99.99%

,

Infrared Sorting Machine LED Alarm

Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm



Infrared Sorting Machine Features:

1. The new exclusive electronic valve for tea color sorter with accurate frequency adjustment can directly hit the gravity center of tea, therefore it can improve the color sorting accuracy of high impurity tea, effectively reduce the breakage rate, improve the accuracy of finished products, and greatly increase the hourly throughput.

2. New hawk - eye recognition camera that can analyze and process cloud image at high speed to complete acquisition and computing, enables to precisely reject the same color or dark color stalk from tea and realizes the grade separation of slightly different color tip.

3. Tea color sorting process can be seen effectively and intuitively through the humanized interactive touch screen and professional software is used for data analysis of different types of tea. Tea color sorting becomes more simple and more convenient.



Technical Parameters:





Model



Throughput

(kg/h)





Sorting Accuracy

(%)





Air Pressure
(mpa)



Power (kw)





Power Supply



Dimension

L×W×H(mm)





Weight

(kg)

TTQ6 ≤1200 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2500
TTW6 ≤1300 ≥99 0.6~0.8 3.5 380V/50HZ 2730*2250*3500 2700
TW4R ≤800 ≥99 0.5~0.8 3.0 380V/50HZ 2380*2445*3100 2050
TW6R ≤1150 ≥99 0.5~0.8 3.2 380V/50HZ 3000*2445*3100 2500
TTW6R ≤1250 ≥99 0.5~0.8 3.5 380V/50HZ 2735*2810*3900 3800

Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.

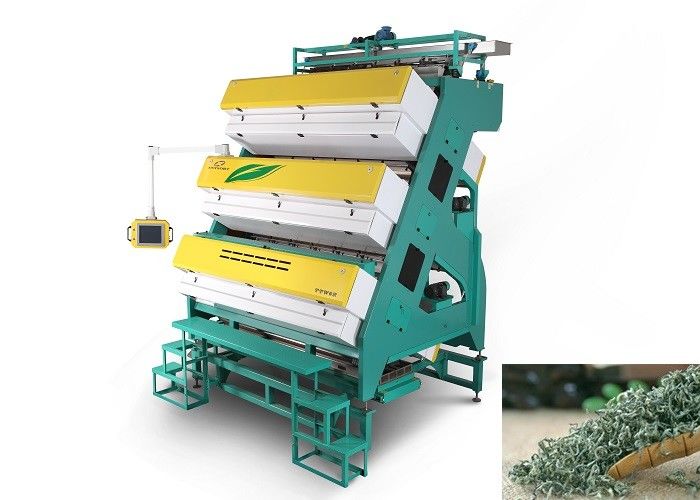

TTW6R Infrared Tea Color Sorter Description:

TTW6R is one of our best color sorting machine for tea leaves with advanced infrared technology.This is a triple layered infrared color sorter with 64 channels for sorting tea product. It is a high-end optical sorting machine and is quite popular.


Examples of sorting:

Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm 0Ultra Low Air Consumption Infrared Sorting Machine Intelligent LED Lights Alarm 1



Frequently Asked Questions:

Q: What can you provide if we buy the machine?

A: After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

Q: Can you supply the air compressor, air tank and air filters?

A: Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

Q: How to calculate Installation personnel cost?

A: Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation

Q: What can you provide if we buy the machine?

A: After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.



Packing and Shipping:

Lead time: 15 working days after receiving original L/C or deposit.

Quality: The quality of the goods as Factory Standard.

Packing: Factory's standard export plywood box package suitable for container shipment.
