Anytime, Anywhere, Anysort
 |
| Place of Origin: | Hefei City, China |
| Brand Name: | Anysort |
| Certification: | ISO9001 Certificate |
| Model Number: | SY7 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Accuracy%: | More Than 99.99 | Capacity: | 2-15t/h |
|---|---|---|---|
| Product Power: | 4.5kw | Dimension: | 3040*1745*1934mm |
| Weight: | 1.685t | Screen: | Intelligent Visualization Interaction |
| Valve: | High Frequency Solenoid | Certificate: | CE |
| High Light: | 192 Channels Salt Optical Sorter,SMC Salt Optical Sorter,SMC optical color sorter |
||

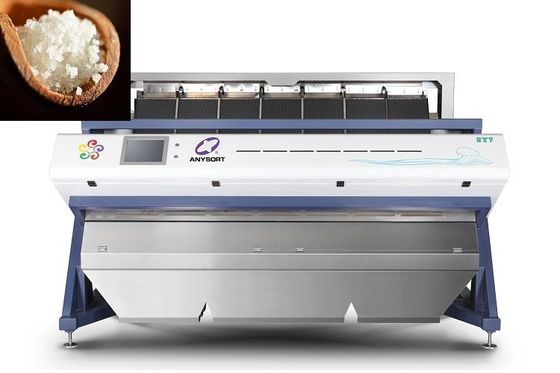

Intelligent Visualization Interaction With High Frequency Solenoid SY7 Salt Optical Sorter ≥99.99% Sorting Accuracy
Technical Parameters:
|
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| LKY1200 | 3-15 | ≥99.50 | 4.5 | 220V/50HZ | 3830X1980X2030 | 1500 |
| SY7 | 2-15 | ≥99.9 | 4.5 | 380V/50HZ | 3040*1745*1934 | 1685 |
Note: Subject to different raw materials and different impurities percentages in raw materials, parameters listed in the above table will change to some extent,which are references for you choosing a suitable model.
SY7 Salts Optical Sorting Machine Working Principle
According to the difference in the color of the material, the equipment automatically sorts the different-colored particles in the granular material. This product can be used for rice, grains, tea, flower tea, nuts, beans, dehydrated vegetables, dried fruits, seafoods, Chinese herbal medicines, tablets, plastics, ores, metals, precious stones, glass, etc.
SY7 Salts Optical Sorting Machine Introduction:
1. Channel type salt color sorter
2. New nano-coating technology chute is more corrosion resistant and longer service life.
3. German chip assembly plunger lip-shaped high frequency valve has wide sorting range.(10-100 mesh)
SY7 Salts Optical Sorting Machine WorkingSteps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Sorting Examples:
FAQ
Q: Are you the trading company or manufacturer ?
A: We are factory which has been specialized in color sorter manufacturing for over 21
Years,awarded a number of patent honors.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if not in stock
Q: Is engineer oversea service available?
A:Yes, Professional after-sales engineers are available to service machine for training and installation overseas.
Q: Can we send samples for test?
A:Sample material for testing use is always welcome.
Sample sorting video and report will be offered for reference.
