| Place of Origin: | China |
| Brand Name: | Anysort |
| Certification: | CE Certificate |
| Model Number: | VM364 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 sets per year |
| Product Number: | VM364 | Product Power: | 3.5KW |
|---|---|---|---|
| Votage: | 220V/50HZ | Capacity: | 1.0-4t/h |
| High Light: | Maize colour sorting machine,99.5% rice sorting machine,99.5% High Proficiency Color Sorter |
||

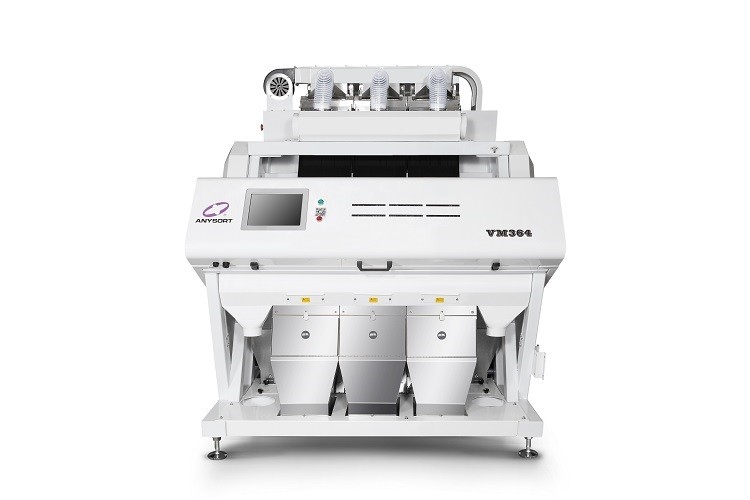

Hawk-eye Camera Corn Kernel 99.5% High Proficiency Color Sorter
In order to maintain high quality, corn kernels should be further sorted after harvest. Winnowing fans used to apply widely for this process, it can effectively remove dust, husks, broken seeds and seeds of other crops. But it can not identify disease seeds, wrinkle seeds, rotten seeds, insects, cigarette butts or even animal waste.
That's basically why color sorter should be applied in maize production line. It can identify the unwanted materials automatically, and reject them without damaging good seeds. As the bellwether of color sorting field, Anysort can even realize the whole process completely automatic and no man involve, take the lead in entering the Industry 4.0 era.
Technical Parameters:
|
Model |
Throughput (t/h)
|
Sorting Accuracy (%)
|
Optimized Carryover |
Power (kw)
|
Power Supply |
Dimension L×W×H(mm)
|
Weight (kg) |
| VM364 | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 |
| VM564 | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 |
| VM764 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 |
| VM864 | 6.0-22 | ≥99.5 | ＞10:1 | 7.5 | 220V/50HZ | 3570*1840*2050 | 2050 |
| VM1064 | 7.0-28 | ≥99.5 | ＞10:1 | 9 | 220V/50HZ | 4250*1840*2050 | 2410 |
Anysort Cloud Color Sorter Three Intelligent Function:
1.Cloud Intelligence
Global initiative one button cloud intelligent technology can intelligently recognize,analyze and calculate input impurity to adjust running data without the inconvenience caused by the complex operation.
2.Intelligent Multilevel sorting
Global initiative intelligent multilevel sorting technology ensures the fine classification of material and perfect realization of the maximum value of color sorting.
3.Intelligent Value
Intelligent high-frequency solenoid value with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.
Sorting Cases:
