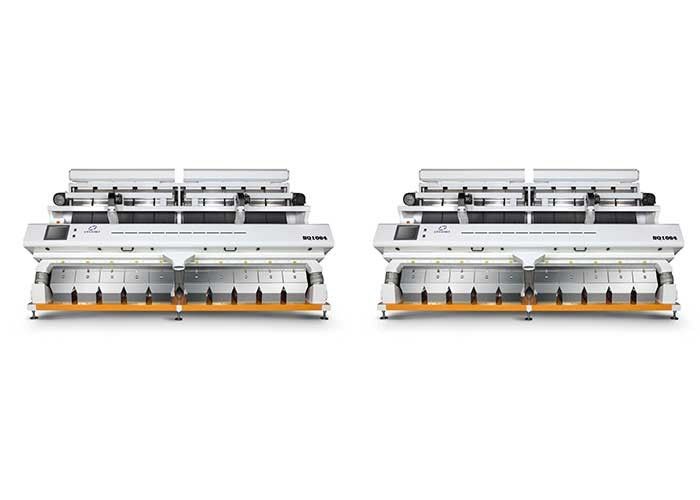

Multifunction Rice / Grain / Seed Sorting Machine With Hawkeye Recognition Camera

Multifunction Rice / Grain / Seed Sorting Machine With Hawkeye Recognition Camera

  • Multifunction Rice / Grain / Seed Sorting Machine With Hawkeye Recognition Camera
Multifunction Rice / Grain / Seed Sorting Machine With Hawkeye Recognition Camera
Product Details:
Place of Origin: China
Brand Name: Anysort
Certification: CE Certification
Model Number: SQ1064
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Type: Seeds Color Sorter Warranty: 1 Year
Model No.: SQ1064 Product Capacity: 7.0-28t/h
Sorting Accuracy: ≥99.99% Optimized Carryove: >10:1
Power: 6.5kw Dimension(L*W*H): 4100*1575*2160mm
High Light:

color separator machine


optical color sorter


Multifunction Seed Sorting Machine

High Capacity Seed Colour Sorter Seperating Raisin / Sunflower / Melon Seeds




Self-developing intelligent module


Minimum operating skill requirements


Sort the highest quality products


The quality of products is stable and consistent


Meet large volume demand for packaging


Minimum product damage


Meet the worst working environment


Product Application


Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, dehydrated vegetables and wide range of tea


Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.


Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar,Coal gangue, Calcite, Cobblestone, Pearl, Marble and others.


Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The Hawkeye recognition camera while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.

Technical Parameters:








Sorting Accuracy




Optimized Carryover


Power (kw)



Power Supply








SQ564 5.0-15 ≥99.9 >10:1 2.6 220V/50HZ 2430*1575*2160 1350
SQ764 5.5-20 ≥99.9 >10:1 4.5 220V/50HZ 3110*1575*2160 1600
SQ1064 7.0-28 ≥99.9 >10:1 6.5 220V/50HZ 4100*1575*2160 2500
Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.

Some tips for equipment Routine maintenance :


  1. Maintenance Operation per shift: Check all spare parts to make sure there are no loose,sweeping dust
  2. Removal by dust scraper: Clean up the dust of the brush on dust scraper with the cleaning gun before you are off work;check if runs smoothly per month and tighten where it is loose
  3. Dust removal of sorting chamber:remove the inside and outside of the glass with dry and clean cloth cleans, and meanwhile check whether the dust scraper is in order.
  4. Drainage of filters:All filters should be frequently discharged (at least three times each shift) to prevent impurities from entering it’s core parts in case of damage to it , causing unnecessary loss
