Industrial Optical Ore Color Sorter Machine Belt Type With Single Layer

Name: Industrial Optical Ore Color Sorter Machine Belt Type With Single Layer
Brand: Anysort
SKU: LK1200
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (169 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Anysort
Certification:	CE Certificate
Model Number:	LK1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	15 working days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Capacity:	0.35-5.5t/h	Sorting Accuracy:	≥99.99
Dimension(LWH):	3830X2120X1765mm	Weight:	1500kg
Warranty:	One Year	After-sales Service:	Engineers Available To Service Machinery Overseas
High Light:	ore sorting machine , mineral sorting machine , Industrial Optical Ore Color Sorter

Optical Ore Color Sorter Ore Sorting Machines

Product Description:

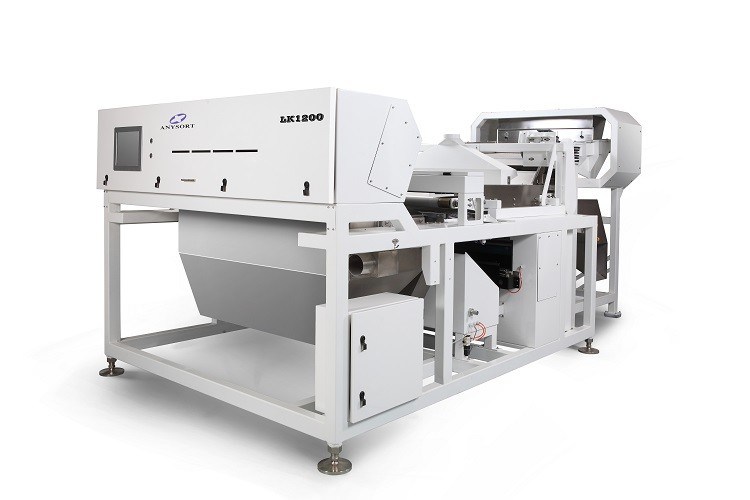

This modle LK1200 is a belt color sorter with single layer,it can applied in field in all kinds of stones, such as calcium carbonate,potassium feldspar,fluorite,copper mine,quartz stone and so on.

Inter multi-core embedded cloud computing operation platform. Super stability adopted by wear-resistant new material belt make customers to be free from worry.

Technical Parameters:

Model	Throughput (t/h)	Sorting Accuracy (%)	Optimized Carryover	Power (kw)	Power Supply	Dimension L×W×H(mm)	Weight (kg)
L1060	0.5-4.0	≥99.50	＞10:1	2.3	380V/50HZ	347515802275	1250
L1200	0.5-5.5	≥99.50	＞10:1	2.6	380V/50HZ	315020002132	1650
LS1200	0.5-5.5	≥99.50	＞10:1	5	380V/50HZ	361620002821	3200
LK1200	0.35-5.5	≥99.99	＞10:1	4.5	380V/50HZ	3830X2120X1765	1500

Note: Subject to different raw materials and different impurities percentage in raw materials, parameters listed in above table will change to some extent ,which are references for you choosing a suitable model.

Belt Color Sorter Technical Characteristics:

Haweye Recognition Camera
new hawkeye recognition camera perfectly shows HD scanning, accurate identification and high computing
Cloud Internet of Things
Internet of things technology realizes real-time operation and monitor of equipment and real-line service.
Cloud Image Processing
Using new cloud image capture processing system and spectrum analysis technology, to achive material red,blue and green three color information capturing,depth recognition tiny fine color sorter to separate.
Cloud intelligent
New cloud processing system combined with advanced computing power and program design to create a new era of big date.
Smart Cloud Guard
High-speed dynamic capture and real-time analysis and disply of materials for true visualization.
High Frequency Solenoid Valve
New high frequency solenoid valve exclusive to color sorter with ultra-low air consumption and high reject accuracy. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.
High Performance Light Control
High performance LED optical system design and light control technology ensure maintenance free and reduce 35% of energy consumption.
Superior Stability
Super stability, no need to change glass during the whole lifetime,super convenient. The new transmission system is designed for the feature of uneven size of ore particles. It realizes ultra-stable operation without fluctuations and achieves long standby.
Intelligent Self-cleaning
New 360° no dead angle dust collection technology is designed for high dust and pollution in the ore processing environment,which can achive automatic dust collection throughout the entire process without human intervention.
